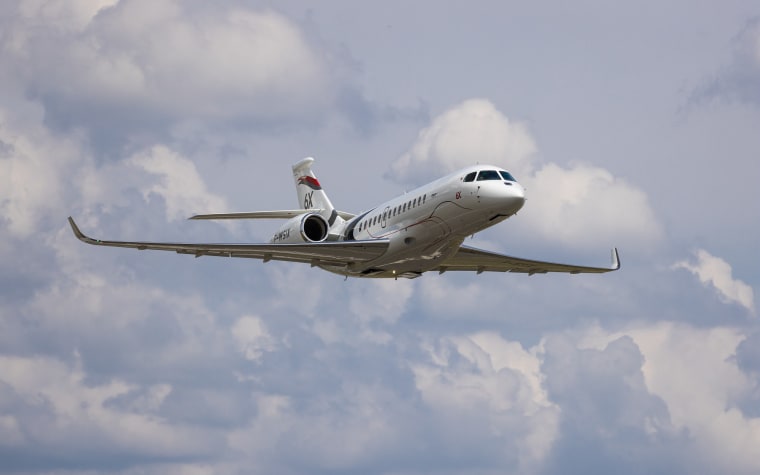

Falcon 6X

The Falcon 6X sets a new standard for widebody comfort, with the tallest and widest cabin in business aviation. Measuring six feet, six inches in height and eight feet, six inches in width, the 6X is the first ultra-widebody purpose-built business jet in the industry.

With an intercontinental range of 5,500 nm, the aircraft can fly from London to Hong Kong or Los Angeles to Geneva nonstop. And it features an advanced version of the pioneering digital flight control system first introduced on the Falcon 7X and further refined on the Falcon 8X.

Dassault’s revolutionary FalconEye® combined vision system is standard on the 6X, providing enhanced safety and situational awareness on approaches in darkness or poor weather. The 6X is also be the first Falcon equipped with the FalconScan advanced diagnostics system, which monitors and reports on 100,000 maintenance parameters. And as with all Falcons, it offers superior operating flexibility, thanks to its unparalleled performance on steep approaches to short runways.

The aircraft is powered by new-generation Pratt & Whitney PW812D engines, which in addition to outstanding flight safety and performance provides improvements in fuel efficiency and carbon emissions.

EASA/FAA certifications were received in August 2023.

Datasheet

External dimensions

Title Value
Height 24 feet 6 inches / 7.47 meters
Length 84 feet 3 inches / 25.68 meters
Wing Span 85 feet 1 inch / 25.94 meters

Weights

Title Value
Max. Takeoff Weight 77,500 pounds / 35,153 kilograms
Max. Landing Weight 66,200 pounds / 30,028 kilograms
Max Zero-Fuel Weight 45,900 pounds / 20,820 kilograms
Max. Fuel Weight 33,800 pounds / 15,331 kilograms

Engines & avionics

Title Value
Type 2 Pratt & Whitney PurePower PW812D
SL-ISA Thrust 13,500 pounds / 60 kilonewtons
Cockpit EASy IV

Cabin dimensions

Title Value
Cabin Height 6 feet 6 inches / 1.98 meters
Cabin Width 8 feet 6 inches / 2.58 meters
Cabin Length (excluding flight deck and baggage) 40 feet 4 inches / 12.30 meters
Cabin Volume (excluding flight deck and baggage) 1,843 cubic feet / 52.2 cubic meters
Baggage Volume 155 cubic feet / 4.4 cubic meters

Performance

Title Value
Range @ Mach .80 (8 pax, 3 crew, NBAA IFR reserves) 5,500 nautical miles / 10,186 kilometers
MMO (Maximum Mach Operating) Mach .90
Max. Certified Altitude 51,000 feet / 15,545 meters
Takeoff Distance (MTOW, SL, ISA) 5,115 feet / 1,560 meters
Landing Distance (8 pax, 3 crew, NBAA IFR Reserves) 2,440 feet / 744 meters
Approach Speed (Vref) (8 pax, 3 crew, NBAA IFR Reserves) 110 knots indicated airspeed (KIAS) / 204 kilometers per hour
